Dewatering Submersible Pump

Name: Dewatering Submersible Pump
Brand: KDS PUMPS INDUSTRIES
Price: 32500 INR
Availability: InStock

32500 INR/Piece

Get a Price/Quote

Product Details:

Fuel Tank Capacity N/A (Electric)
Mounting Type Vertical Submersible
Noise Level < 75 dB(A)
Max Suction Submersible, N/A
Speed 2850 rpm (50Hz) / 3450 rpm (60Hz)
Flow Rate Up to 300 m3/h
Frequency 50Hz/60Hz
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Dewatering Submersible Pump Price And Quantity

Price 32500 INR/Piece
Minimum Order Quantity 1 Piece

Dewatering Submersible Pump Product Specifications

Theory Centrifugal Pump
Voltage 220-240V / 380-415V
Inlet/Outlet Customizable, typically 2 to 6
Pump Type Submersible Dewatering
Fuel Type Electric
Features Portable, Corrosion Resistant, Overload Protection
Working Temperature 0C - 40C
Application Construction Sites, Tunnels, Basements
Head Size Up to 70 meters
Max Suction Submersible, N/A
Pressure Up to 7 bar
Suction Type Bottom Suction
Speed 2850 rpm (50Hz) / 3450 rpm (60Hz)
Priming Self-priming (Submerged)
Flow Rate Up to 300 m3/h
Power 0.5 HP - 15 HP
Frequency 50Hz/60Hz
Caliber 50 mm - 150 mm
Material Stainless Steel/Aluminum/CI
Control System Manual/Automatic Float Switch
Discharge Pressure Adjustable, depends on model
Standard CE/ISO Certified
Usage Dewatering, Drainage, Construction, Flood Control
Fuel Tank Capacity N/A (Electric)
Seals Type Double Mechanical Seal
Capacity Variable up to 300 m3/h
Structure Submersible Motor Pump
Mounting Type Vertical Submersible
Noise Level < 75 dB(A)

Ambient Humidity 90% RH
Cable Length 10 m standard, extendable
Insulation Class Class F/H
Impeller Type Semi-open or Vortex
Cooling Method Water Cooled Motor
Handle Type Integrated Lifting Handle
Protection Class IP68
Maximum Immersion Depth Up to 15 m
Starting Method Direct On-line (DOL)
Gross Weight 17 kg - 95 kg depending on model

Dewatering Submersible Pump Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 5-7 Days

Product Description

Purchase the Dewatering Submersible Pump, a crackerjack solution engineered for demanding environments. Take advantage of its prime features: semi-open or vortex impeller, water-cooled motor with class-leading IP68 protection, and impressive immersion depth up to 15 meters. This opulent yet robust pump is portable, corrosion-resistant, and boasts overload protection. Handle flows up to 300 m3/h with noise levels below 75 dB(A). Its integrated lifting handle and customizable inlets/outlets ensure top adaptability. CE/ISO certified and crafted from stainless steel, aluminum, or cast iron - a prime asset for dewatering, drainage, flood control, and construction needs.

Distinguished Features & Crucial Applications

The Dewatering Submersible Pump is designed for both specialized and general use, excelling at dewatering, drainage, and flood control. Extra features include a double mechanical seal for durability, integrated lifting handle for transport, overload protection, and customizable inlet/outlet sizes. This pump delivers prime performance for construction, tunnels, basements, and other challenging environments. Its ability to operate under high humidity and varying voltages grants superior competitive advantage in demanding industries.

FOB Port, Packaging & Export Market Dynamics

Standard logistics include secure packaging to guard the pump's opulent build during transit. Proposal amounts align with prevailing market values, providing flexibility for bulk orders or select shipments. Predominant FOB ports span major Indian hubs, ensuring swift export to Southeast Asia, Africa, the Middle East, and Europe. Attention to packaging details, coupled with an adaptable export process, maximizes reliability throughout the supply chain for global manufacturers and suppliers.

FAQ's of Dewatering Submersible Pump:

Q: How does the Dewatering Submersible Pump handle various water types?

A: Thanks to its semi-open or vortex impeller design, this pump efficiently manages both clean and sediment-laden water, making it versatile for dewatering and drainage activities in demanding environments.

Q: What are the main benefits of using an IP68 water-cooled submersible pump?

A: IP68 protection ensures full submersion and safeguards against dust and moisture, while water-cooling keeps the motor at prime operating temperature, prolonging pump life and enhancing safety.

Q: Where is the Dewatering Submersible Pump most commonly used?

A: This pump is commonly deployed at construction sites, tunnels, basements, and during flood control measures due to its portability, corrosion resistance, and ability to operate at depths up to 15 meters.

Q: What is the process for customizing inlet/outlet sizes on this pump?

A: Clients can specify their preferred inlet and outlet diameters, typically ranging from 2 to 6 inches, at the time of order to ensure optimal compatibility with site requirements.

Q: How can users take advantage of the pump's manual or automatic control system?

A: Depending on operational needs, users can select between manual controls or an automatic float switch, offering flexible, hands-free operation for both temporary and permanent installations.

Q: When should maintenance be carried out for continued high performance?

A: Routine checks of seals, electrical connections, and impeller condition are recommended regularly, especially following prolonged use, to maintain peak performance and prevent unplanned downtime.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Dewatering Pump' category

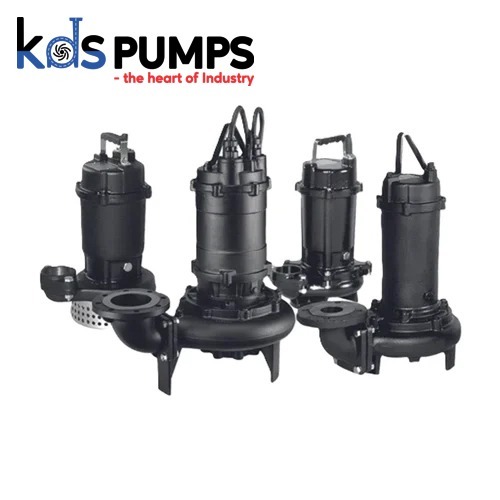

Sewage Submersible Dewatering Grinder Cutter Pump Price : 35000 INR/Piece Minimum Order Quantity : 1 Material : Cast Iron Flow Rate : 30 LPM Power : Electric Head Size : 10 Meter Usage : Industrial Pressure : High Pressure Voltage : 220440 Volt (v)
