End Suction Back Pull Out Pump

Name: End Suction Back Pull Out Pump
Brand: KDS PUMPS INDUSTRIES
Price: 98500 INR
Availability: InStock

98500 INR/Piece

Get a Price/Quote

Product Details:

Speed 1450-2900 rpm
Noise Level Low
Max Suction Up to 8 meters
Head Size Up to 150 meters
Caliber Standard & Customized
Flow Rate Up to 2000 m3/hr
Working Temperature -10C to 120C
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

End Suction Back Pull Out Pump Price And Quantity

Minimum Order Quantity 1 Piece
Price 98500 INR/Piece

End Suction Back Pull Out Pump Product Specifications

Inlet/Outlet Varies (e.g., 50 mm to 300 mm)
Working Temperature -10C to 120C
Theory Centrifugal Pump
Flow Rate Up to 2000 m3/hr
Control System Manual / Automatic (Optional)
Capacity Up to 2000 m3/hr
Fuel Type Electric Driven
Fuel Tank Capacity Not Applicable (Electric)
Usage Water Supply, Irrigation, HVAC, Industrial, Firefighting
Max Suction Up to 8 meters
Priming Self Priming (with priming chamber)/Manual
Noise Level Low
Structure Back Pull Out Design, Horizontal
Speed 1450-2900 rpm
Caliber Standard & Customized
Pump Type End Suction, Back Pull-Out
Material Cast Iron / Stainless Steel / Bronze
Head Size Up to 150 meters
Features Easy Maintenance, Back Pull Out, Robust Design, High Efficiency
Pressure Up to 16 bar
Frequency 50Hz / 60Hz
Standard ISO 2858 / DIN 24255
Discharge Pressure Up to 16 bar
Voltage 220V - 415V AC
Power Up to 250 kW
Suction Type End Suction
Mounting Type Baseplate Mounted
Application Industrial, Municipal, Agriculture, Irrigation, Process
Seals Type Mechanical Seal / Gland Packing

Bearing Type Antifriction (Ball/Roller)
Compliance ISO, DIN, IS standards
Direction of Rotation Clockwise Viewed from Driving End
Service Life Long, with minimal maintenance
Cooling Method TEFC (Totally Enclosed Fan Cooled)
Protection Class IP55 or better
Paint Finish Epoxy Coated
Connection Type Flanged
Impeller Type Closed / Semi-Open

End Suction Back Pull Out Pump Trade Information

Supply Ability 100 Piece Per Month
Delivery Time 5-7 Days

Product Description

Discover a matchless solution with our End Suction Back Pull Out Pump, designed for heroic performance across industrial, municipal, and agricultural settings. Personalise your system with scarce, limited-time configurations in cast iron, stainless steel, or bronze. This resplendent, IP55-protected, TEFC-cooled powerhouse reaches up to 2000 m3/hr flow, 150 meters head, and 250 kW power. Engineered for easy maintenance and lasting service life, its robust, epoxy-coated structure fully complies with ISO, DIN, and IS standards. Elevate operations with this limited offering-crafted for high efficiency and reliability.

Versatile Applications Across Industries

The End Suction Back Pull Out Pump is ideal for water supply, HVAC, firefighting, irrigation, industrial processing, and municipal usage. Suited for clean or slightly contaminated liquids, these pumps are commonly applied in agriculture fields, municipal water facilities, manufacturing plants, and process industries. Installation is straightforward-baseplate mounting ensures stable setup, while flexible control options support both manual and automatic operation, making it a reliable choice for multiple application areas with effortless maintenance.

Sample Policy and Export Service

We offer sample units of our End Suction Back Pull Out Pump for discerning buyers, highlighting our commitment to quality and satisfaction. Exports are managed via major Indian ports (FOB), with carefully arranged drop-off for international clients. Our primary domestic markets include all major regions of India, and we welcome both bulk and custom orders from commercial, municipal, and agricultural buyers seeking reliable pumping solutions tailored to their operational needs.

FAQ's of End Suction Back Pull Out Pump:

Q: How does the back pull-out design of the pump benefit maintenance?

A: The back pull-out design allows users to access the pump's internal components for inspection or repair without disturbing the piping system, resulting in reduced downtime and minimal disruption during maintenance.

Q: What materials are available for personalising the pump construction?

A: You can personalise the pump with materials like cast iron, stainless steel, or bronze, depending on your application requirements and the type of fluid being handled.

Q: Where is this pump commonly used?

A: This end suction pump is commonly used in applications such as water supply, irrigation, HVAC systems, industrial processing, municipal utilities, and firefighting operations.

Q: What is the maximum flow rate and head this pump can achieve?

A: The pump can deliver a maximum flow rate of up to 2000 m3/hr and reach a head size of up to 150 meters, making it suitable for both medium and high-demand applications.

Q: What is the process for ordering a sample pump?

A: To request a sample, customers can contact us directly. We offer sample pumps as part of our export market strategy, and shipment can be arranged via FOB from major Indian ports.

Q: How do I select the right model for my application?

A: Selection involves assessing your required flow rate, head, application type, and operating conditions. Our engineering team can assist in customising solutions to ensure optimal performance and matchless reliability.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'End Suction Back Pull Out Pump' category

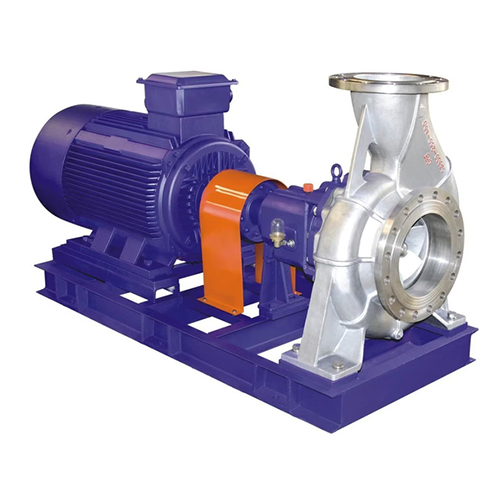

Centrifugal Process Pump Price : 95000 INR/Piece Minimum Order Quantity : 1 Mounting Type : Base Plate Mounted Seals Type : Mechanical Seal or Gland Packing Application : Other, Refineries, Reverse Osmosis, Chemical Plants, Water Treatment Frequency : 50 Hz Pressure : Other, Max 16 bar Features : Corrosion Resistant, Easy Maintenance, Sturdy Construction Voltage : 415V Discharge Pressure : Up to 16 kg/cm2 Suction Type : Single Suction Power : Other, Up to 200 HP (or as per requirement) Standard : As per ISO 2858 / DIN 24256 Noise Level : Less than 85 dB Structure : Other, Single Stage, Horizontal Speed : 2900/1450 RPM Max Suction : Up to 8 meters Usage : Other, Chemical, Water, Industrial, Process application Priming : SelfPriming/NonSelfPriming as per design Material : Cast Iron, Stainless Steel, or as specified Head Size : Up to 100 meters Pump Type : Other, Single Stage Centrifugal Caliber : Standard sizes available Flow Rate : Up to 500 m3/hr Theory : Centrifugal Pump Working Temperature : Up to 120C Inlet/Outlet : Customizable (e.g., 65 mm x 50 mm, 100 mm x 80 mm) Fuel Type : Other, Electric motor driven Control System : Manual/automatic starting, electronic monitoring Capacity : Up to 2000 LPM Fuel Tank Capacity : N/A (Electric driven)
