High Pressure Multistage Pump

Name: High Pressure Multistage Pump
Brand: KDS PUMPS INDUSTRIES
Price: 55000 INR
Availability: InStock

55000 INR/Piece

Get a Price/Quote

Product Details:

Caliber 32mm to 100mm
Control System Automatic/Manual Control Panel Compatible
Noise Level Less than 75 dB
Speed 2900 RPM
Features Corrosion resistant, Easy maintenance, High efficiency
Theory Centrifugal Pump (Multistage)
Mounting Type Vertical Base Mounted
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

High Pressure Multistage Pump Price And Quantity

Minimum Order Quantity 1 Piece
Price 55000 INR/Piece

High Pressure Multistage Pump Product Specifications

Caliber 32mm to 100mm
Seals Type Mechanical Seal
Fuel Type Electric
Pressure Up to 30 Bar
Material Stainless Steel/ Cast Iron Options
Noise Level Less than 75 dB
Control System Automatic/Manual Control Panel Compatible
Structure Vertical Multistage
Speed 2900 RPM
Power 0.75 kW to 75 kW
Pump Type Multistage High Pressure Pump
Usage Industrial, Boiler feed, RO Plant, Water Supply
Theory Centrifugal Pump (Multistage)
Features Corrosion resistant, Easy maintenance, High efficiency
Standard ISO, CE Certified
Mounting Type Vertical Base Mounted
Head Size Max 300 meters
Voltage 220V/380V/415V
Capacity Up to 50 m3/h
Frequency 50 Hz / 60 Hz
Max Suction Up to 8 meters
Flow Rate 1 m3/h to 50 m3/h
Suction Type End Suction
Application High Pressure Water Supply, Fire Fighting, Boiler Feed, Irrigation
Inlet/Outlet DN32 to DN100 (customizable)
Discharge Pressure Up to 30 Bar
Priming Self priming type optional
Working Temperature -10C to 120C

Painting/Coating Epoxy powder coated body
Max Ambient Temperature Up to 50C
Impeller Material AISI 304/316 Stainless Steel
Installation Indoor/Outdoor use
Bearing Type Heavy Duty Ball Bearings
Direction of Rotation Clockwise
Shaft Material Stainless Steel
Protection Class IP55 motor protection
Cooling Method TEFC - Totally Enclosed Fan Cooled
Motor Efficiency IE2/IE3 as per request

High Pressure Multistage Pump Trade Information

Delivery Time 5-7 Days

Product Description

Discover grand value with our acclaimed High Pressure Multistage Pump, engineered with world-class precision for industrial reliability. Featuring virtuoso performance, its AISI 304/316 stainless steel impeller and shaft ensure optimal corrosion resistance, complemented by an epoxy powder-coated, IP55-protected body for indoor or outdoor installation. The pump supports up to 30 bar pressure and head heights of 300 meters, with customizable connections from 32mm to 100mm. Achieve seamless supply and high efficiency, whether for boiler feed, RO plants, fire fighting, or irrigation needs. Certified to ISO and CE standards.

Commercial Strength for High Demands

This High Pressure Multistage Pump is purpose-built for challenging application methods in commercial and industrial environments. Its versatility extends to high pressure water supply, boiler feed, irrigation, and fire-fighting. The self-priming, end suction centrifugal design accommodates vertical base mounting and supports fully automatic or manual control systems. Engineered for easy maintenance and top-tier corrosion resistance, it ensures unparalleled dependability for RO plants, process industries, and water transfer tasks across a spectrum of demanding scenarios.

Seamless Transactions and Reliable Supply

Procure your High Pressure Multistage Pump effortlessly with flexible payment terms tailored to your requirements. Goods transport is streamlined, guaranteeing quick dispatch and safe arrival. Samples are available upon request to assure confidence in quality. With significant supply ability from our India-based manufacturing hub, we ensure steady availability for bulk or recurring orders, meeting strict timelines and supporting commercial projects globally.

FAQ's of High Pressure Multistage Pump:

Q: How does the High Pressure Multistage Pump benefit industrial operations?

A: This pump delivers high efficiency and robust pressure management, supporting various industrial applications such as boiler feed, RO plants, and water transfer. Its corrosion-resistant design, combined with heavy-duty ball bearings and a world-class motor, maximizes uptime and operational reliability.

Q: What materials are used in the construction of this pump?

A: The pump features AISI 304/316 stainless steel for impellers and shafts, with optional stainless steel or cast iron bodies, ensuring durability and corrosion resistance even under challenging environments.

Q: Where can the High Pressure Multistage Pump be installed?

A: Designed for versatile deployment, it can be installed both indoors and outdoors, thanks to its IP55 motor protection and resilient epoxy powder coating.

Q: What are the main features of the pump's protection and efficiency systems?

A: The pump is equipped with a TEFC (Totally Enclosed Fan Cooled) motor, IE2/IE3 motor efficiency options, and advanced mechanical seals, supporting high efficiency, reduced noise, and enhanced safety.

Q: How is procurement and delivery managed for this pump?

A: Goods transport is managed efficiently for rapid dispatch, secure shipment, and timely arrival. Customized payment terms and accessible samples provide a smooth and confident purchasing process, while robust supply capacity ensures readiness for large-scale orders.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Multistage Pumps' category

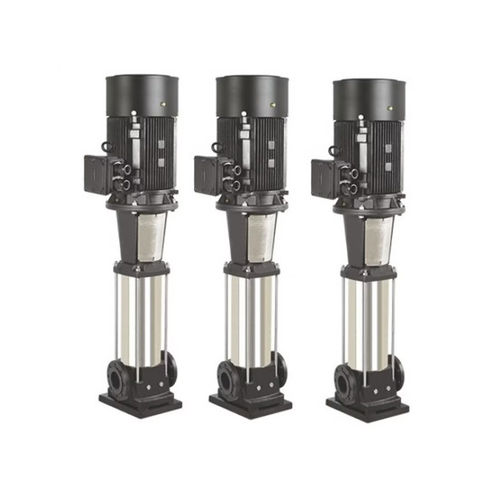

Stainless Steel Multi Stage Centrifugal Pump Price : 25000 INR/Piece Minimum Order Quantity : 1 Material : Stainless Steel (304/316) Pressure : Other, High Pressure (up to 32 bar depending on model) Power : Other, 0.37 kW to 110 kW Usage : Other, Water Supply, Pressure Boosting, Industrial Water Circulation Voltage : 220V / 380V, 50Hz / 60Hz Frequency : 50Hz / 60Hz Noise Level : <80 dB Control System : Manual / Automatic Control Panel Structure : Other, Vertical Multistage Speed : 2900rpm / 3500rpm Caliber : 25100 mm Seals Type : Mechanical Seal Fuel Type : Other, Electric Flow Rate : 1 m3/h to 60 m3/h Suction Type : Single Suction Inlet/Outlet : DN 25100 mm (varies by model) Application : Other, Industrial, HVAC, Water Treatment, Fire Fighting Discharge Pressure : up to 32 bar Priming : SelfPriming / NonSelfPriming (depending on model) Working Temperature : 15C to 120C Pump Type : Other, Multi Stage Centrifugal Pump Theory : Centrifugal Pump Features : Corrosion Resistant, Energy Efficient, Compact Design, Low Maintenance Standard : ISO 9001, CE Certified Mounting Type : Vertical Floor Mounted Head Size : up to 300 meters Capacity : 160 m3/h Max Suction : 8 meters

Send Inquiry

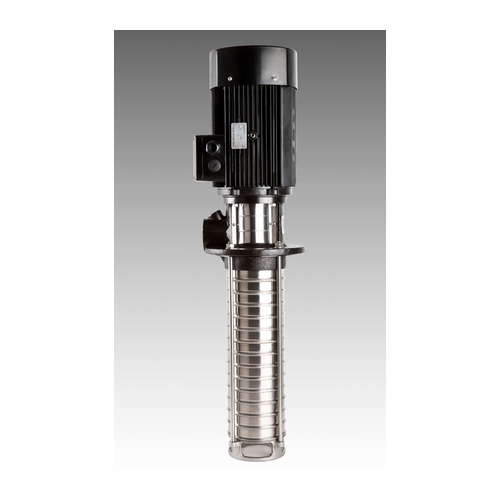

High Pressure Multi Stage Coolant Pump Price : 45000 INR/Piece Minimum Order Quantity : 1 Material : Stainless Steel, Cast Iron options Pressure : Other, Up to 30 bar Power : Other, 0.5 HP to 25 HP Usage : Other, Industrial Coolant Supply, Machine Tool Applications Voltage : 220V/380V, 50Hz/60Hz Frequency : 50Hz/60Hz Noise Level : Low noise design Control System : Manual or Automatic control options Structure : Other, Vertical Multi Stage Speed : 2800 rpm Caliber : Customizable as per application Seals Type : Mechanical Seal Fuel Type : Other, Electric Flow Rate : Up to 300 L/min (varies by model) Suction Type : Single Suction Inlet/Outlet : Threaded/Flanged, Sizes as per model Application : Other, CNC Machining, Industrial Filtration, Metal Working Discharge Pressure : High Pressure, up to 30 bar Priming : Selfpriming/Manual as per model Working Temperature : 0C to 80C Pump Type : Other, Vertical Multi Stage Coolant Pump Theory : Other, Centrifugal Pump, Multi Stage Features : Corrosion resistant body, compact design, high efficiency, low maintenance Standard : Conforms to industrial ISO standards Mounting Type : Vertical, Immersion or Stand Mounting Head Size : Up to 300 meters Capacity : Up to 300 L/min Max Suction : Up to 7 meters

Send Inquiry

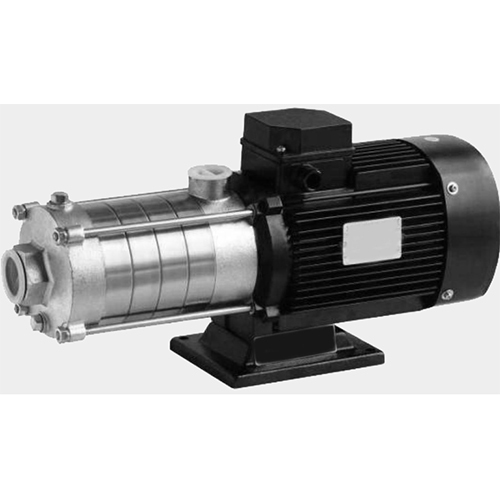

Horizontal Multistage Pump Price : 16500 INR/Piece Minimum Order Quantity : 1 Material : Stainless Steel Pressure : Other, Max 10 bar Power : Other, 0.75 kW 7.5 kW Usage : Other, Industrial, Commercial, Agricultural Voltage : 220V/380V Frequency : 50 Hz / 60 Hz Noise Level : <75 dB Control System : Manual/Automatic Structure : Other, Horizontal Multistage Speed : 2900 rpm Caliber : 25 mm Seals Type : Mechanical Seal Fuel Type : Other, Electric Flow Rate : 216 m3/h Suction Type : Horizontal Suction Inlet/Outlet : DN25/DN25 Application : Other, Water Supply, Pressure Boosting, Irrigation, HVAC Discharge Pressure : Up to 10 bar Priming : Selfpriming Working Temperature : 15C to 120C Pump Type : Other, Horizontal Multistage Centrifugal Pump Theory : Centrifugal Pump Features : Energy efficient, Low Maintenance, High Efficiency, Compact Design Standard : ISO 9001 Mounting Type : Base Mounted Head Size : 2090 meters Capacity : 216 m3/h Max Suction : 8 meters

Send Inquiry

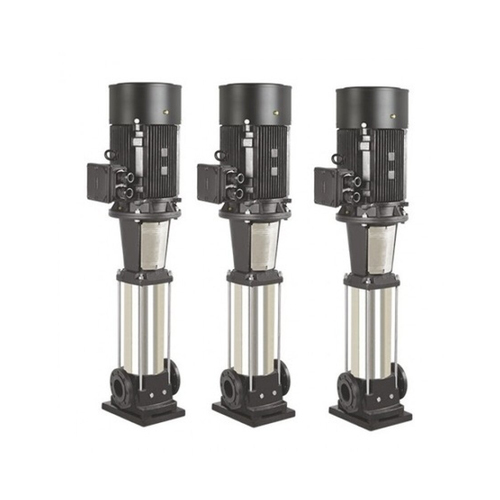

Vertical Multi Stage High Pressure Pump Price : 45000 INR/Piece Minimum Order Quantity : 1 Material : Stainless Steel/Cast Iron Pressure : High Pressure Power : Other, 0.37kW75kW Usage : Other, Water Supply, Pressure Boosting, Industrial Applications Voltage : 220V/380V/415V Frequency : 50/60 Hz Noise Level : 75 dB(A) Control System : Manual/Automatic Structure : Other, Vertical Multistage Speed : 2900 rpm Caliber : DN32DN150 Seals Type : Mechanical Seal Fuel Type : Other, Electric Flow Rate : 1240 m3/h Suction Type : Vertical Inlet/Outlet : Threaded/Flanged Application : Other, Boiler Feed, RO System, HVAC, Fire Fighting, Irrigation Discharge Pressure : Up to 25 bar Priming : Selfpriming/Nonselfpriming Working Temperature : 15C to 120C Pump Type : Other, Vertical Multi Stage High Pressure Pump Theory : Centrifugal Pump Features : Corrosion Resistant, Energy Efficient, Easy Maintenance Standard : ISO 9001 Mounting Type : Vertical Base Mounted Head Size : Up to 250 meters Capacity : 1240 m3/h Max Suction : Up to 8 meters
