Pressure Boosting System

Name: Pressure Boosting System
Brand: KDS PUMPS INDUSTRIES
Price: 125000 INR
Availability: InStock

125000 INR/Piece

Get a Price/Quote

Product Details:

Speed 2900 rpm
Working Temperature 0C to 80C
Caliber 50 mm
Voltage 220V/380V
Flow Rate 10-100 m3/h
Discharge Pressure Up to 10 Bar
Theory Centrifugal Pump Theory
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Pressure Boosting System Price And Quantity

Price 125000 INR/Piece
Minimum Order Quantity 1 Piece

Pressure Boosting System Product Specifications

Application High-rise Buildings, Industrial, Municipal
Noise Level <75 dB
Max Suction 8 m
Fuel Tank Capacity N/A (Electric)
Control System Fully Automatic Control Panel
Features Dry Run Protection, Low Noise, Energy Efficient
Capacity Variable based on model
Material Stainless Steel
Usage Water Supply, Pressure Boosting
Head Size 20-120 m
Mounting Type Base Plate Mounted
Pressure Up to 10 Bar
Priming Self-Priming/Manual Priming
Caliber 50 mm
Fuel Type Electric
Pump Type Booster Pump Set
Power 2.2kW x 3 pumps
Speed 2900 rpm
Seals Type Mechanical Seal
Working Temperature 0C to 80C
Suction Type End Suction
Theory Centrifugal Pump Theory
Inlet/Outlet DN50/DN50
Frequency 50/60 Hz
Standard ISO9001
Structure Multistage, Horizontal
Voltage 220V/380V
Flow Rate 10-100 m3/h
Discharge Pressure Up to 10 Bar

Spare Parts Availability Readily Available
Expansion Tank Integrated
Number of Pumps 3 (can be customized)
Protection Class IP55
Drive Type Electric Motor Driven
Max Operating Pressure 16 Bar
Pressure Sensor Included
Connection Type Flanged
Cooling Method Air Cooled
Compliance CE Certified
Service On-Site Installation & Commissioning
Vibration Dampers Installed for low vibration operation
Pump Material SS304/SS316 based on request
Display Digital Control Panel
Automation Level Fully Automatic (with PLC/relay logic)

Pressure Boosting System Trade Information

Delivery Time 5-7 Days

Product Description

Capitalize on a first-class Pressure Boosting System, engineered for immaculate water supply performance in high-rise, industrial, and municipal settings. Featuring three (customizable) electric motor-driven pumps, this classic system delivers variable flows (10-100 m3/h), up to 10 Bar pressure, and ensures steady output with self-priming/manual priming. The robust stainless steel construction (SS304/SS316), CE Compliance, ISO9001 Standard, and IP55 protection class guarantee durability. Key Special features include vibration dampers, fully automatic PLC control, digital display, integrated expansion tank, and readily available spare parts for seamless operation.

Features, Application Media & User Profile

This immaculate Pressure Boosting System boasts special features such as PLC-based automation, energy efficiency, low noise (<75 dB), dry run protection, and a digital control panel for monitoring. Designed for water supply and pressure boosting, it serves classic high-rise buildings, industrial plants, and municipal applications. Top-tier stainless steel construction and end suction design make it ideal for professionals-facility managers, engineers, and infrastructure operators-demanding robust and reliable systems for flawless water delivery and pressure management.

Certifications, Delivery, & Sample Exchange

All systems comply with CE and ISO9001 standards, ensuring every shipped good exceeds classic quality expectations. The exchange of product documentation is completed swiftly after order completion, with on-site installation and commissioning available. Order completion typically takes 2-4 weeks, with reliable delivery across India. Sample units can be arranged upon request, allowing first-hand immersion before large-scale ordering. Trust our immaculate service from initial inquiry through to the seamless exchange of shipped goods for first-class satisfaction.

FAQ's of Pressure Boosting System:

Q: How is the Pressure Boosting System installed and commissioned?

A: On-site installation and commissioning are provided by qualified professionals to ensure that your Pressure Boosting System is properly set up, tested, and functioning according to your application requirements.

Q: What applications are ideal for this Pressure Boosting System?

A: This system is specially designed for water supply and pressure boosting in high-rise buildings, industrial complexes, and municipal utilities where consistent pressure and first-class reliability are essential.

Q: When can I expect delivery after placing an order?

A: Order completion typically requires 2-4 weeks, including system preparation, documentation exchange, and scheduling for shipped goods, ensuring a prompt and organized delivery process.

Q: Where can I get spare parts for maintenance?

A: Spare parts for the Pressure Boosting System are readily available from our supply network across India, ensuring timely support and minimal downtime during maintenance or repairs.

Q: What are the key benefits of using this Pressure Boosting System?

A: Customers gain from immaculate water flow consistency, energy-efficient operation, low-noise design, comprehensive automation, vibration reduction, and robust stainless steel construction-delivering unmatched reliability and performance.

Q: How does the automatic control panel enhance system usage?

A: The fully automatic digital control panel (with PLC/relay logic) simplifies system operation, enables real-time monitoring, protects against dry running, and allows effortless management for users, optimizing both convenience and efficiency.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Booster Pump' category

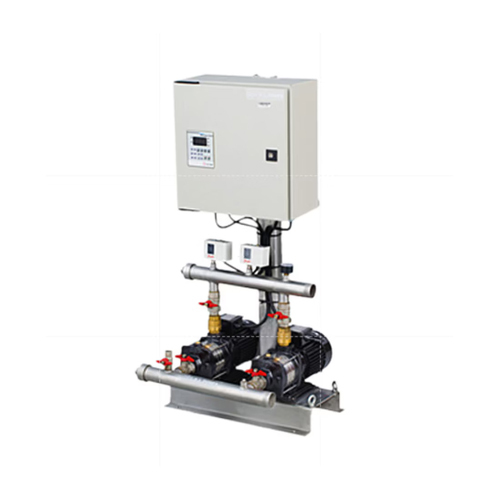

Twin Pressure Booster System Price : 85000 INR/Piece Minimum Order Quantity : 1 Speed : 2800 RPM (nominal) Seals Type : Mechanical Seal Working Temperature : 0C to 60C Suction Type : Horizontal Caliber : Customized as per requirement Pump Type : Other, Centrifugal, horizontal multistage Fuel Type : Other, Electric Power : Other, 0.75 kW to 3.0 kW (per pump, modelspecific) Structure : Other, Skid mounted, modular twinpump system Voltage : 220415V, 50/60Hz Flow Rate : Up to 20 m3/hr (per pump, varies by model) Discharge Pressure : Maximum 6 Bar Theory : Other, Twin Pressure Booster System based on centrifugal pump theory Frequency : 50 Hz/60 Hz Inlet/Outlet : 1 to 2 BSP/NPT thread or flanged as per system design Standard : Complies with IS/ISO standards Application : Other, Booster System for domestic, apartments, hotels, hospitals, and industrial water supply Noise Level : Less than 70 dB Max Suction : 78 meters Usage : Other, Water pressure boosting for residential, commercial, and industrial applications Head Size : Up to 60 meters Mounting Type : Base mounted/skid mounted Pressure : Other, Up to 6 Bar Priming : Selfpriming or flooded suction Control System : Automatic pressure controller/PLC/VFD optional Features : Twin pumps with automatic alternating operation, dryrun protection, over/under voltage protection Capacity : Variable as per demand (based on pump selection) Material : Stainless steel/Cast Iron (Pump body and components) Fuel Tank Capacity : Not applicable (electric driven)

Send Inquiry

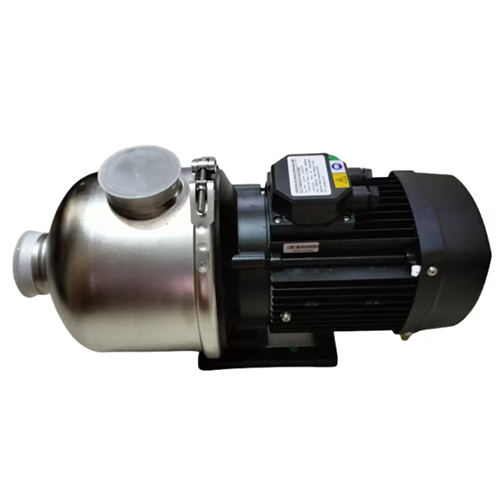

SS Dome Type Pump Price : 13500 INR/Piece Minimum Order Quantity : 1 Speed : 2800 RPM Seals Type : Mechanical Seal Working Temperature : Up to 90C Suction Type : Single Suction Caliber : 25 mm Pump Type : Other, Dome Type Centrifugal Pump Fuel Type : Other, Electric Power : Other, 0.75 kW / 1 HP Structure : Other, Horizontal, Monoblock Voltage : 220240 V / 50 Hz Flow Rate : Up to 60 L/min Discharge Pressure : 35 m Theory : Centrifugal Pump Frequency : 50 Hz Inlet/Outlet : 25 mm x 25 mm Standard : ISI Certified Application : Other, Domestic, Industrial, RO Plants, Pressure Boosting Noise Level : Less than 65 dB Max Suction : 8 m Usage : Other, Water Supply, Industrial, Agricultural Head Size : Up to 35 m Mounting Type : Base Mounted Pressure : Other, Max 3.5 Bar Priming : Self Priming Control System : Manual / Automatic Features : Rust Proof, High Durability, Low Maintenance, Efficient Functioning Capacity : 60 L/min Material : Stainless Steel (SS 304/316)
