PTFE Lined Pump

Name: PTFE Lined Pump
Brand: KDS PUMPS INDUSTRIES
Price: 22500 INR
Availability: InStock

22500 INR/Piece

Get a Price/Quote

Product Details:

Frequency 50 Hz / 60 Hz
Voltage 220V/380V (depending on model)
Flow Rate Up to 100 m3/h (model dependent)
Control System Manual/Electrical Panel (optional)
Fuel Tank Capacity N/A (electric drive)
Mounting Type Baseplate mounted
Head Size Up to 40 m
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

PTFE Lined Pump Price And Quantity

Price 22500 INR/Piece
Minimum Order Quantity 1 Piece

PTFE Lined Pump Product Specifications

Frequency 50 Hz / 60 Hz
Usage Acid transfer, chemical processing, corrosive liquid handling
Structure Horizontal, single-stage, end suction
Capacity Up to 100 m3/h
Application Chemical Industry, Pharmaceutical, Water Treatment, Pulp & Paper
Voltage 220V/380V (depending on model)
Flow Rate Up to 100 m3/h (model dependent)
Power 0.75 kW to 15 kW (depending on model)
Control System Manual/Electrical Panel (optional)
Fuel Tank Capacity N/A (electric drive)
Suction Type Top Suction
Material PTFE Lined (wetted parts), Cast Iron/SS304/SS316 (casing/structure)
Seals Type Mechanical Seal / Gland Packing
Fuel Type Electric
Mounting Type Baseplate mounted
Standard ISO 2858 / DIN / ANSI
Pump Type PTFE Lined Centrifugal Pump
Priming Self-priming/Non-self-priming (as per design)
Head Size Up to 40 m
Theory Centrifugal Pump
Speed 2900 rpm (standard), 1450 rpm (optional)
Inlet/Outlet Flanged, various sizes available (commonly 25mm-100mm)
Pressure Up to 10 bar
Max Suction Up to 4 m
Features Corrosion resistant, Leak-proof design, Maintenance-friendly, High chemical compatibility
Noise Level 70 dB
Discharge Pressure Up to 10 bar
Working Temperature -20C to +120C (PTFE lining suitable for wide range of chemicals)
Caliber 25 mm to 100 mm

Lining Thickness 3-5 mm PTFE lining
Max Solid Content Suitable for liquids with minor solid content
Impeller Type Closed/Enclosed PTFE lined impeller
Product Code/Model Available on request, customized as per application
Motor Protection IP55/IP65 enclosure
Shaft Material SS316/SS304

PTFE Lined Pump Trade Information

Delivery Time 5-7 Days

Product Description

Introducing our splendiferous PTFE Lined Pump, a superlative choice for demanding chemical applications. In demand across industries, it offers a remarkable blend of competitive pricing and robust construction, with a 3-5 mm PTFE lining ensuring outstanding corrosion resistance. Featuring a closed impeller for liquids with minimal solids, IP55/IP65 motor protection, and versatile SS316/SS304 shaft options, it stands out for maintenance-friendly operation. With ISO, DIN, and ANSI compliance, self-priming options, and customizable caliber, this pump is built for longevity, safety, and maximum efficiency. Price cuts available-contact us for a tailored quote.

Competitive Applications & Advantages of PTFE Lined Pumps

Our PTFE Lined Pump excels in handling acidic, corrosive, and hazardous media, making it ideal for chemical processing, pharmaceuticals, water treatment, and pulp & paper plants. With its exceptional chemical compatibility and leak-proof, maintenance-friendly design, this pump delivers a competitive edge in reliability and reduced downtime. Suitable for applications demanding high safety and polarization resistance, it tackles pressures up to 10 bar and temperatures from -20C to +120C, ensuring enduring performance in harsh environments.

PTFE Lined Pump: Sample Guidelines & Certification Details

We avail product samples upon request, with nominal charges applied toward total expenditure if the order proceeds. Payment terms are flexible, tailored to suit seamless supply and procurement processes. Certified to ISO, DIN, and ANSI standards, our PTFE Lined Pump guarantees both quality and safety. Bulk and customized orders can be addressed with prompt response, ensuring you receive a dependable solution perfectly suited to your requirements and budget.

FAQ's of PTFE Lined Pump:

Q: How does a PTFE Lined Pump handle corrosive liquids?

A: The pump employs a 3-5 mm thick PTFE lining on all wetted components, offering superior protection against aggressive chemicals and reducing the risk of corrosion in harsh environments.

Q: What applications are suitable for the PTFE Lined Pump?

A: This pump is ideal for acid transfer, chemical processing, pharmaceutical manufacturing, water treatment, and pulp & paper industries-especially where handling corrosive or hazardous fluids is required.

Q: Where can I customize the PTFE Lined Pump for specific process needs?

A: Customization for impeller type, caliber, enclosure, and control systems is available; simply contact our supply team with your application specifications and we'll tailor the pump to your process.

Q: When should I request a sample or quote for PTFE Lined Pumps?

A: Samples and quotations can be requested at any stage of your project planning. Early engagement ensures compatibility, cost optimization, and timely delivery of customized pumps.

Q: What are the main benefits of using a PTFE Lined Pump?

A: Key benefits include remarkable chemical compatibility, a leak-proof and corrosion-resistant design, ease of maintenance, and compliance with global standards such as ISO, DIN, and ANSI.

Q: How is the PTFE Lined Pump delivered and what certifications does it hold?

A: Pumps are supplied as per your project schedule, accompanied by ISO, DIN, or ANSI certifications, ensuring adherence to quality and international safety standards.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Chemical Pumps' category

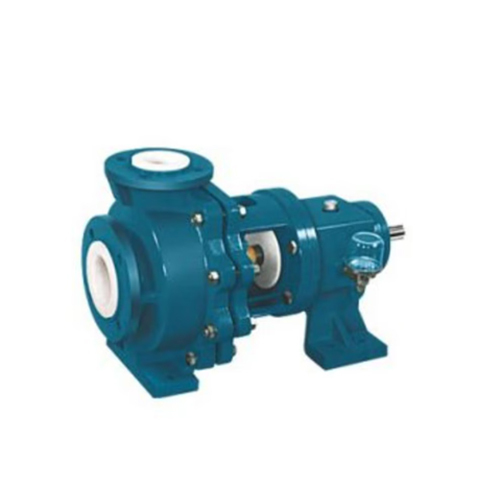

PVDF Lined Pump Price : 120000 INR/Piece Minimum Order Quantity : 1 Material : PVDF Lined (Polyvinylidene Fluoride) Head Size : Up to 50 meters Pressure : Other, Up to 5 kg/cm2 Usage : Other, Chemical Transfer, Acids Handling Frequency : 50 Hz / 60 Hz Power : Other, 0.5 HP to 20 HP Voltage : 220V / 380V / 415V, as required Standard : ISO 2858 / DIN 24256 Pump Type : Other, PVDF Lined Centrifugal Pump Suction Type : End Suction Mounting Type : Baseplate Mounted Fuel Type : Other, Electric Seals Type : Mechanical Seal / Gland Packing Discharge Pressure : As per pump design Noise Level : < 70 dB Working Temperature : Up to 120C Caliber : Standard/Customized Theory : Centrifugal Pump Priming : Non SelfPriming Max Suction : Up to 3.5 meters Features : Corrosion Resistant, Leak Proof, Low Maintenance, Long Service Life Inlet/Outlet : 25 mm to 150 mm (customized options) Speed : 1450 / 2900 RPM Structure : Other, Singlestage, Horizontal Application : Other, Chemical Process Industry, Pharmaceuticals, Water Treatment Capacity : Wide range as per model Control System : Manual / Optional Automatic Controls Flow Rate : Up to 200 m3/hr

Send Inquiry

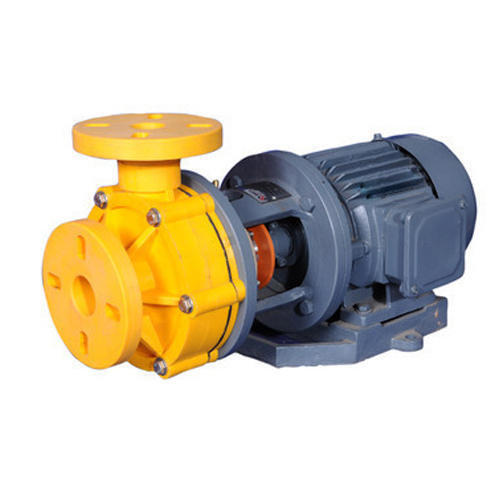

Corrosion Resistant Polypropylene Centrifugal Pump Price : 25000 INR/Piece Minimum Order Quantity : 1 Material : Cast Iron Head Size : Up to 65 mtr Pressure : High Pressure Usage : Industrial Frequency : 50 Hertz (HZ) Power : Electric Voltage : 440 Volt (v)
