Seal Less Magnetic Centrifugal Pump

Name: Seal Less Magnetic Centrifugal Pump
Brand: KDS PUMPS INDUSTRIES
Price: 12500 INR
Availability: InStock

12500 INR/Piece

Get a Price/Quote

Product Details:

Flow Rate Up to 35 m3/h
Max Suction Up to 3 meters
Theory Centrifugal Pump
Frequency 50Hz/60Hz
Control System On/Off with Optional Automation
Noise Level Low, <75 dB(A)
Voltage 220-240V / 380-415V
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Seal Less Magnetic Centrifugal Pump Price And Quantity

Price 12500 INR/Piece
Minimum Order Quantity 1 Piece

Seal Less Magnetic Centrifugal Pump Product Specifications

Discharge Pressure Up to 5 bar
Voltage 220-240V / 380-415V
Standard ISO 2858, ANSI
Pump Type Magnetic Drive Centrifugal Pump
Control System On/Off with Optional Automation
Usage Chemical Transfer, Acid Handling, Pharmaceuticals, Water Treatment
Seals Type Seal Less, Magnetic Coupling
Pressure Up to 5 bar
Noise Level Low, <75 dB(A)
Theory Centrifugal Pump
Structure Single Stage
Frequency 50Hz/60Hz
Flow Rate Up to 35 m3/h
Max Suction Up to 3 meters
Speed 2900 RPM
Mounting Type Horizontal/Base Mounted
Inlet/Outlet Threaded/Flanged As Per Requirement
Priming Self Priming Not Required
Fuel Type Electric
Features Leak-Free Operation, Chemical Resistant, Maintenance-Free
Head Size Up to 25 meters
Power 0.25 HP to 10 HP
Working Temperature -10C to 100C
Material PP, PVDF, SS316, PTFE
Application Corrosive Chemical Transfer, Laboratories, Industrial Applications
Caliber 19mm to 50mm
Capacity Up to 35 m3/h
Suction Type Flooded Suction

Direction of Rotation Clockwise (standard)
Cooling Method Air Cooled
Connection Type BSP/NPT/Flange as required
Impeller Type Closed or Semi-Open Impeller
Motor Protection IP55
Weight Range 8 kg to 35 kg
Insulation Class F or H
Maximum Viscosity Up to 200 cP

Seal Less Magnetic Centrifugal Pump Trade Information

Supply Ability 500 Piece Per Month
Delivery Time 5-7 Days

Product Description

Experience the acclaimed quality of our Seal Less Magnetic Centrifugal Pump, engineered for the finest and most meritorious chemical transfer applications. With an incomparable magnetic drive design, this pump guarantees leak-free, maintenance-free operation, ensuring the highest performance for acid handling and pharmaceutical industries. The robust construction-available in PP, PVDF, SS316, and PTFE-offers outstanding chemical resistance. Take advantage of air-cooled, IP55 motor protection with Class F/H insulation. Handle viscosities up to 200 cP and order today for ISO 2858 and ANSI certified reliability across laboratories and industrial applications.

Advanced Features & Versatile Uses

This Seal Less Magnetic Centrifugal Pump boasts extra features like chemical resistance, leak-free performance, and low noise operation, making it ideal for pharmaceuticals, acid handling, water treatment, and laboratories. It finds commercial use in industrial chemical transfer and corrosive applications, thanks to its maintenance-free magnetic coupling, wide material compatibility (PP, PVDF, SS316, PTFE), and adaptable mechanical design, including options for closed or semi-open impellers and various connection types. Its user-oriented structure fits demanding professional environments.

Prompt Delivery & Reliable Packaging

Shipped goods are carefully packaged for secure transport and swift handling, ensuring your proposal amount is protected and your order is handed over efficiently. Delivery times vary depending on order volume and customization, but you can expect thoughtful coordination throughout the process. Our main domestic market covers India, guaranteeing timely supply and responsive customer support for all commercial and industrial clients. Every unit is delivered with compliance to the highest standards and client specifications.

FAQ's of Seal Less Magnetic Centrifugal Pump:

Q: How does the seal less and magnetic coupling design benefit this centrifugal pump?

A: The seal less design, coupled with magnetic drive technology, eliminates leakage, reduces maintenance, and provides safer handling for hazardous and corrosive chemicals, ensuring longevity and reliability.

Q: What are the main applications for this pump in commercial settings?

A: This pump is widely used in chemical transfer, acid handling, pharmaceuticals, laboratories, and water treatment plants, thanks to its robust construction and adaptability to different media and industries.

Q: When is the pump ready for shipping after placing an order?

A: Standard configurations are usually shipped within a few days, while custom-built pumps may require additional production time. Delivery details are provided with the proposal amount and order confirmation.

Q: Where can the Seal Less Magnetic Centrifugal Pump be installed?

A: This pump can be base-mounted horizontally in a variety of industrial and laboratory environments, supporting applications requiring corrosion resistance and reliable, leak-free performance.

Q: What materials are available for construction, and why does selection matter?

A: The pump is available in PP, PVDF, SS316, and PTFE. Selecting the appropriate material is crucial to ensure chemical compatibility, durability, and safety when transferring aggressive or corrosive fluids.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Sealless Pumps' category

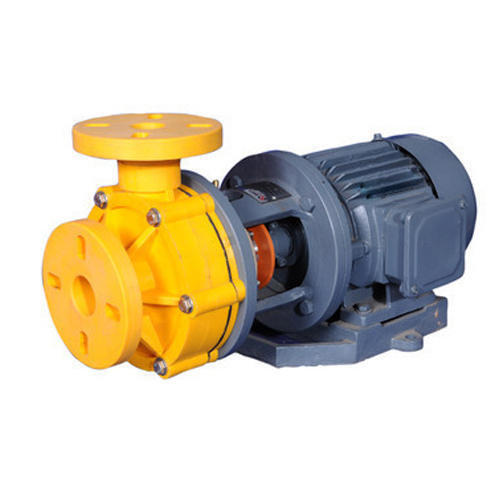

PP Magdrive Sealless Pumps Price : 15000 INR/Piece Minimum Order Quantity : 1 Frequency : 50 Hertz (HZ) Pressure : Medium Pressure Material : Cast Iron Power : Electric Usage : Industrial Voltage : 220440 Volt (v)
